Wybron Infogate™

Wybron Infogate™

Infogate™ serves as the heart of Wybron’s Infotrace feedback system, which uses the industry-standard feedback protocol Remote Device Management, or RDM, to gather vital feedback from the equipment on a lighting rig.

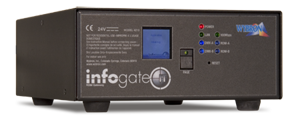

The name Infogate refers to two system components: the Infogate gateway (pictured above) and the Infogate software. The gateway box processes incoming DMX/RDM signals from the equipment on a rig, and the Infogate software translates the signals into a graphical user interface that's easy to use and understand.


The software works with the Infogate Gateway™, the Net IT™, and the Net IT PS-600™, but the InfoGate gateway™ won't work without the software (latest version 2.2). Click here to download the software.


Product Features

  • Model Number: 4210
  • Width: 8.05 inches/204 mm
  • Height: 3.71 inches/94 mm
  • Depth: 9.78 inches/248 mm
  • Weight: 4.5 lbs/2.04 kg
  • 5-pin XLR in/out (2 Universes)
  • RJ-45 for PC connection
  • 100-240 VAC 50/60Hz
