Iron Cheeseboros
Our Rigid Right Angle Dual Purpose Cheeseboro is made of forged low carbon steel. Our Dual Purpose Cheeseboros are made for 1-1/4"-1-1/2" Schedule 40 Pipe.
Product Features
- Fits 1-1/4"-1-1/2" Schedule 40 Pipe
The Light Source Mega-Coupler
Our Mega-Coupler has solid nut tabs that won’t break off. Mega-Coupler uses standard half inch by 1-1/4 inch long hex head grade 8 bolts to secure your load. Bolt head locks into hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. Has industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2 " OD truss tube.
Product Features
- Minimum size 1.25" pipe, 1.66" OD pipe
- Maximum Size 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Safe Vertical Working Load 1,100 Pounds 500kg
- Weight 1.2 Pounds

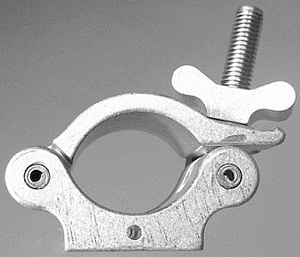

ProBurger 2" Half-Coupler
ProBurger Couplers are constructed from a certified high tensile-strength 6016 T6 aluminum extrusion. They attach securely to tubes and combine strength and durability with a high degree of safety
Product Features
- Fits 2" Pipe
- 500 lbs S.W.L.

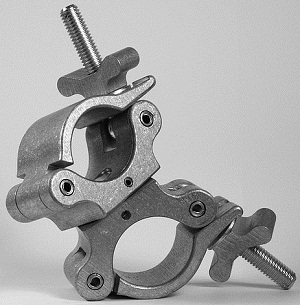

The Light Source Swivel Coupler
The Swivel Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Swivel-Coupler has the wide wing nuts for fastening the clamp to the pipe or tube. The Swivel Coupler can be locked into a 90 degree fixed coupler by adding a 7/32″ × 2″ spirol pin.
Product Features
- Minimum size 1.25" pipe, 1.66" OD pipe
- Maximum Size 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Safe Vertical Working Load 1,100 Pounds 500kg
- Weight 2.2 Pounds
ProBurger 2" Coupler
ProBurger Couplers are constructed from a certified high tensile-strength 6016 T6 aluminum extrusion. They attach securely to tubes and combine strength and durability with a high degree of safety
Product Features
- Fits 2" Pipe
- 500 lbs S.W.L.
